GitLab Flavored Markdown

GitLab automatically renders Markdown content. For example, when you add a comment to an issue, you type the text in the Markdown language. When you save the issue, the text is rendered with a set of styles. These styles are described on this page.

For example, in Markdown, an ordered list looks like this:

- Cat
- Dog
- Turtle

When this list is rendered, it looks like this:

• Cat
• Dog
• Turtle

These styles are valid for GitLab only. The GitLab documentation website and the main GitLab website use Kramdown instead.

You should not view this page in the documentation, but instead view these styles as they appear on GitLab.

GitLab Flavored Markdown extends the CommonMark specification. It was inspired by GitHub Flavored Markdown.

Where you can use GitLab Flavored Markdown

You can use GitLab Flavored Markdown in the following areas:

• Comments
• Issues
• Merge requests
• Milestones
• Snippets (the snippet must be named with a .md extension)
• Wiki pages
• Markdown documents inside repositories
• Epics

You can also use other rich text files in GitLab. You might have to install a dependency to do so. For more information, see the gitlab-markup gem project.

Differences between GitLab Flavored Markdown and standard Markdown

GitLab uses standard CommonMark formatting. However, GitLab Flavored Markdown extends standard Markdown with features made specifically for GitLab.

Features not found in standard Markdown:

• Color chips written in HEX, RGB or HSL
• Diagrams and flowcharts
• Emoji
• Front matter
• Inline diffs
• Math equations and symbols written in LaTeX
• Task Lists
• Table of Contents
• Wiki specific Markdown

Features extended from standard Markdown:

Features not found in standard Markdown

The following features are not found in standard Markdown.

Colors

View this topic in GitLab.

You can write a color in the formats: HEX, RGB, or HSL.

• HEX: `#RGB[A]` or `#RRGGBB[AA]`
• RGB: `RGB[A](R, G, B[, A])`
• HSL: `HSL[A](H, S, L[, A])`

Named colors are not supported.

Colors in backticks are followed by a color indicator:

- `#F00`
- `#F00A`
- `#FF0000`
- `#FF0000AA`
- `RGB(0,255,0)`
- `RGB(0%,100%,0%)`
- `RGBA(0,255,0,0.3)`
- `HSL(540,70%,50%)`
- `HSLA(540,70%,50%,0.3)`

• #F00
• #F00A
• #FF0000
• #FF0000AA
• RGB(0,255,0)
• RGB(0%,100%,0%)
• RGBA(0,255,0,0.3)
• HSL(540,70%,50%)
• HSLA(540,70%,50%,0.3)

Diagrams and flowcharts

You can generate diagrams and flowcharts from text by using Mermaid or PlantUML. You can also use Kroki to create a wide variety of diagrams.

Mermaid

Visit the official page for more details. The Mermaid Live Editor helps you learn Mermaid and debug issues in your Mermaid code. Use it to identify and resolve issues in your diagrams.

To generate a diagram or flowchart, write your text inside the mermaid block:

```mermaid
graph TD;
  A-->B;
  A-->C;
  B-->D;
  C-->D;
```

You can also include subgraphs:

```mermaid
graph TB

  SubGraph1 --> SubGraph1Flow
  subgraph "SubGraph 1 Flow"
  SubGraph1Flow(SubNode 1)
  SubGraph1Flow -- Choice1 --> DoChoice1
  SubGraph1Flow -- Choice2 --> DoChoice2
  end

  subgraph "Main Graph"
  Node1[Node 1] --> Node2[Node 2]
  Node2 --> SubGraph1[Jump to SubGraph1]
  SubGraph1 --> FinalThing[Final Thing]
end
```

PlantUML

To make PlantUML available in GitLab, a GitLab administrator must enable it. For more information, see the PlantUML & GitLab page.

Kroki

To make Kroki available in GitLab, a GitLab administrator must enable it. For more information, see the Kroki integration page.

Emojis

View this topic in GitLab.

Sometimes you want to :monkey: around a bit and add some :star2: to your :speech_balloon:. Well we have a gift for you:

:zap: You can use emoji anywhere GitLab Flavored Markdown is supported. :v:

You can use it to point out a :bug: or warn about :speak_no_evil: patches. And if someone improves your really :snail: code, send them some :birthday:. People :heart: you for that.

If you're new to this, don't be :fearful:. You can join the emoji :family:. All you need to do is to look up one of the supported codes.

Consult the [Emoji Cheat Sheet](https://www.emojicopy.com) for a list of all supported emoji codes. :thumbsup:

Sometimes you want to around a bit and add some to your . Well we have a gift for you:

You can use emoji anywhere GitLab Flavored Markdown is supported.

You can use it to point out a or warn about patches. If someone improves your really code, send them some . People you for that.

If you’re new to this, don’t be . You can join the emoji . All you need to do is to look up one of the supported codes.

Consult the Emoji Cheat Sheet for a list of all supported emoji codes.

Emojis and your operating system

The previous emoji example uses hard-coded images. Rendered emojis in GitLab may be different depending on the OS and browser used.

Most emojis are natively supported on macOS, Windows, iOS, Android, and fall back on image-based emojis where there is no support.

On Linux, you can download Noto Color Emoji to get full native emoji support. Ubuntu 18.04 (like many modern Linux distributions) has this font installed by default.

Front matter

Front matter is metadata included at the beginning of a Markdown document, preceding the content. This data can be used by static site generators like Jekyll, Hugo, and many other applications.

When you view a Markdown file rendered by GitLab, front matter is displayed as-is, in a box at the top of the document. The HTML content displays after the front matter. To view an example, you can toggle between the source and rendered version of a GitLab documentation file.

In GitLab, front matter is used only in Markdown files and wiki pages, not the other places where Markdown formatting is supported. It must be at the very top of the document and must be between delimiters.

The following delimiters are supported:

• YAML (---):

  ---
  title: About Front Matter
  example:
  language: yaml
  ---


• TOML (+++):

  +++
  title = "About Front Matter"
  [example]
  language = "toml"
  +++


• JSON (;;;):

  ;;;
  {
    "title": "About Front Matter"
    "example": {
      "language": "json"
    }
  }
  ;;;


Other languages are supported by adding a specifier to any of the existing delimiters. For example:

---php
$title = "About Front Matter";
$example = array(
  'language' => "php",
);
---

Inline diff

View this topic in GitLab.

With inline diff tags, you can display {+ additions +} or [- deletions -].

The wrapping tags can be either curly braces or square brackets:

- {+ addition 1 +}
- [+ addition 2 +]
- {- deletion 3 -}
- [- deletion 4 -]

However, you cannot mix the wrapping tags:

- {+ addition +]
- [+ addition +}
- {- deletion -]
- [- deletion -}

If your diff includes words in `code` font, make sure to escape each backtick ` with a backslash \. Otherwise the diff highlight does not render correctly:

- {+ Just regular text +}
- {+ Text with `backticks` inside +}
- {+ Text with escaped \`backticks\` inside +}

Math

View this topic in GitLab.

Math written in LaTeX syntax is rendered with KaTeX.

Math written between dollar signs $ is rendered inline with the text. Math written in a code block with the language declared as math is rendered on a separate line:

This math is inline $`a^2+b^2=c^2`$.

This is on a separate line:

```math
a^2+b^2=c^2
```

This math is inline $a^2+b^2=c^2$.

This is on a separate line

a^2+b^2=c^2

KaTeX only supports a subset of LaTeX.

This syntax also works for the Asciidoctor :stem: latexmath. For details, see the Asciidoctor user manual.

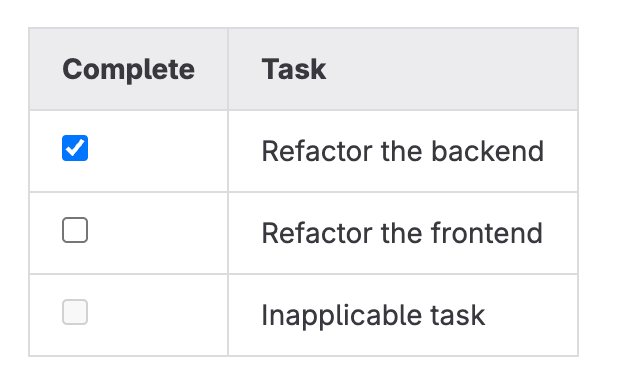

Task lists

View this topic in GitLab.

You can add task lists anywhere Markdown is supported.

• In issues, merge requests, and comments, you can click to select the boxes.
• In all other places, you cannot click to select the boxes. You must edit the Markdown manually by adding or removing an x in the brackets.

To create a task list, follow the format of an ordered or unordered list:

- [x] Completed task
- [ ] Incomplete task
  - [ ] Sub-task 1
  - [x] Sub-task 2
  - [ ] Sub-task 3

1. [x] Completed task
1. [ ] Incomplete task
   1. [ ] Sub-task 1
   1. [x] Sub-task 2

Table of contents

A table of contents is an unordered list that links to subheadings in the document.

To add a table of contents to a Markdown file, wiki page, issue request, or merge request description, add either the [[_TOC_]] or [TOC] tag on its own line.

This is an intro sentence to my Wiki page.

[[_TOC_]]

## My first heading

First section content.

## My second heading

Second section content.

Wiki-specific Markdown

The following topics show how links inside wikis behave.

Wiki - direct page link

A direct page link includes the slug for a page that points to that page, at the base level of the wiki.

This example links to a documentation page at the root of your wiki:

[Link to Documentation](documentation)

Wiki - direct file link

A direct file link points to a file extension for a file, relative to the current page.

If the following example is on a page at <your_wiki>/documentation/related, it links to <your_wiki>/documentation/file.md:

[Link to File](file.md)

Wiki - hierarchical link

A hierarchical link can be constructed relative to the current wiki page by using ./<page>, ../<page>, and so on.

If this example is on a page at <your_wiki>/documentation/main, it links to <your_wiki>/documentation/related:

[Link to Related Page](related)

If this example is on a page at <your_wiki>/documentation/related/content, it links to <your_wiki>/documentation/main:

[Link to Related Page](../main)

If this example is on a page at <your_wiki>/documentation/main, it links to <your_wiki>/documentation/related.md:

[Link to Related Page](related.md)

If this example is on a page at <your_wiki>/documentation/related/content, it links to <your_wiki>/documentation/main.md:

[Link to Related Page](../main.md)

Wiki - root link

A root link starts with a / and is relative to the wiki root.

This example links to <wiki_root>/documentation:

[Link to Related Page](/documentation)

This example links to <wiki_root>/miscellaneous.md:

[Link to Related Page](/miscellaneous.md)

GitLab-specific references

GitLab Flavored Markdown renders GitLab-specific references. For example, you can reference an issue, a commit, a team member, or even an entire project team. GitLab Flavored Markdown turns that reference into a link so you can navigate between them. All references to projects should use the project slug rather than the project name.

Additionally, GitLab Flavored Markdown recognizes certain cross-project references and also has a shorthand version to reference other projects from the same namespace.

GitLab Flavored Markdown recognizes the following:

1. Introduced in GitLab 13.7.

For example, referencing an issue by using #123 formats the output as a link to issue number 123 with text #123. Likewise, a link to issue number 123 is recognized and formatted with text #123. If you don’t want #123 to link to an issue, add a leading backslash \#123.

In addition to this, links to some objects are also recognized and formatted. Some examples of these are:

• Comments on issues: "https://gitlab.com/gitlab-org/gitlab/-/issues/1234#note_101075757", which are rendered as #1234 (comment 101075757)
• The issues designs tab: "https://gitlab.com/gitlab-org/gitlab/-/issues/1234/designs", which are rendered as #1234 (designs).
• Links to individual designs: "https://gitlab.com/gitlab-org/gitlab/-/issues/1234/designs/layout.png", which are rendered as #1234[layout.png].

Embedding metrics in GitLab Flavored Markdown

Metric charts can be embedded in GitLab Flavored Markdown. Read Embedding Metrics in GitLab flavored Markdown for more details.

Features extended from standard Markdown

All standard Markdown formatting should work as expected in GitLab. Some standard functionality is extended with additional features, without affecting the standard usage. If a functionality is extended, the new option is listed as a sub-section.

Blockquotes

Use a blockquote to highlight information, such as a side note. It’s generated by starting the lines of the blockquote with >:

> Blockquotes help you emulate reply text.
> This line is part of the same quote.

Quote break.

> This is a very long line that is still quoted properly when it wraps. Keep writing to make sure this line is long enough to actually wrap for everyone. You can also *add* **Markdown** into a blockquote.

Blockquotes help you emulate reply text. This line is part of the same quote.

Quote break.

This is a very long line that is still quoted properly when it wraps. Keep writing to make sure this line is long enough to actually wrap for everyone. You can also add Markdown into a blockquote.

Multiline blockquote

If this section isn’t rendered correctly, view it in GitLab.

GitLab Flavored Markdown extends the standard Markdown by also supporting multi-line blockquotes fenced by >>>:

>>>
If you paste a message from somewhere else

that spans multiple lines,

you can quote that without having to manually prepend `>` to every line!
>>>

If you paste a message from somewhere else

that spans multiple lines,

you can quote that without having to manually prepend > to every line!

Code spans and blocks

You can highlight anything that should be viewed as code and not standard text.

Inline code is highlighted with single backticks `:

Inline `code` has `back-ticks around` it.

Inline code has back-ticks around it.

To achieve a similar effect for a larger code example, you can:

• Fence an entire block of code with triple backticks (```).
• Fence an entire block of code with triple tildes (~~~).
• Indent it four or more spaces.

```python
def function():
    #indenting works just fine in the fenced code block
    s = "Python code"
    print s
```

    Using 4 spaces
    is like using
    3-backtick fences.

~~~
Tildes are OK too.
~~~

The three examples above render as:

def function():
    #indenting works just fine in the fenced code block
    s = "Python code"
    print s

Using 4 spaces
is like using
3-backtick fences.

Tildes are OK too.

Colored code and syntax highlighting

If this section isn’t rendered correctly, view it in GitLab.

GitLab uses the Rouge Ruby library for more colorful syntax highlighting in code blocks. For a list of supported languages visit the Rouge project wiki. Syntax highlighting is supported only in code blocks, so you can’t highlight inline code.

To fence and apply syntax highlighting to a block of code, append the code language to the opening code declaration, three back-ticks (```) or three tildes (~~~):

```javascript
var s = "JavaScript syntax highlighting";
alert(s);
```

```python
def function():
    #indenting works just fine in the fenced code block
    s = "Python syntax highlighting"
    print s
```

```ruby
require 'redcarpet'
markdown = Redcarpet.new("Hello World!")
puts markdown.to_html
```

```
No language indicated, so no syntax highlighting.
s = "There is no highlighting for this."
But let's throw in a <b>tag</b>.
```

The four examples above render as:

var s = "JavaScript syntax highlighting";
alert(s);

def function():
    #indenting works just fine in the fenced code block
    s = "Python syntax highlighting"
    print s

require 'redcarpet'
markdown = Redcarpet.new("Hello World!")
puts markdown.to_html

No language indicated, so no syntax highlighting.
s = "There is no highlighting for this."
But let's throw in a <b>tag</b>.

Emphasis

There are multiple ways to emphasize text in Markdown. You can italicize, bold, strikethrough, and combine these emphasis styles together. Strikethrough is not part of the core Markdown standard, but is part of GitLab Flavored Markdown.

Examples:

Emphasis, aka italics, with *asterisks* or _underscores_.

Strong emphasis, aka bold, with double **asterisks** or __underscores__.

Combined emphasis with **asterisks and _underscores_**.

Strikethrough uses two tildes. ~~Scratch this.~~

Emphasis, aka italics, with asterisks or underscores.

Strong emphasis, aka bold, with double asterisks or underscores.

Combined emphasis with asterisks and underscores.

Strikethrough uses two tildes. Scratch this.

Multiple underscores in words and mid-word emphasis

If this section isn’t rendered correctly, view it in GitLab.

Avoid italicizing a portion of a word, especially when you’re dealing with code and names that often appear with multiple underscores. GitLab Flavored Markdown extends the standard Markdown standard by ignoring multiple underlines in words, to allow better rendering of Markdown documents discussing code:

perform_complicated_task

do_this_and_do_that_and_another_thing

but_emphasis is_desired _here_

perform_complicated_task

do_this_and_do_that_and_another_thing

but_emphasis is_desired here

If you wish to emphasize only a part of a word, it can still be done with asterisks:

perform*complicated*task

do*this*and*do*that*and*another thing

performcomplicatedtask

dothisanddothatandanother thing

Footnotes

Footnotes add a link to a note that are rendered at the end of a Markdown file.

To make a footnote, you need both a reference tag and a separate line (anywhere in the file) with the note content.

Regardless of the tag names, the relative order of the reference tags determines the rendered numbering.

Reference tags can use letters and other characters. Avoid using lowercase w or an underscore (_) in footnote tag names until this bug is resolved.

A footnote reference tag looks like this: [^1]

This reference tag is a mix of letters and numbers. [^footnote-42]

[^1]: This is the text inside a footnote.

[^footnote-42]: This is another footnote.

A footnote reference tag looks like this:¹

This reference tag is a mix of letters and numbers.²

Headers

# H1
## H2
### H3
#### H4
##### H5
###### H6

Alternatively, for H1 and H2, an underline-ish style:

Alt-H1
======

Alt-H2
------

Header IDs and links

GitLab Flavored Markdown extends the standard Markdown standard so that all Markdown-rendered headers automatically get IDs, which can be linked to, except in comments.

On hover, a link to those IDs becomes visible to make it easier to copy the link to the header to use it somewhere else.

The IDs are generated from the content of the header according to the following rules:

1. All text is converted to lowercase.
2. All non-word text (such as punctuation or HTML) is removed.
3. All spaces are converted to hyphens.
4. Two or more hyphens in a row are converted to one.
5. If a header with the same ID has already been generated, a unique incrementing number is appended, starting at 1.

Example:

# This header has spaces in it
## This header has a :thumbsup: in it
# This header has Unicode in it: 한글
## This header has spaces in it
### This header has spaces in it
## This header has 3.5 in it (and parentheses)

Would generate the following link IDs:

1. this-header-has-spaces-in-it
2. this-header-has-a-in-it
3. this-header-has-unicode-in-it-한글
4. this-header-has-spaces-in-it-1
5. this-header-has-spaces-in-it-2
6. this-header-has-3-5-in-it-and-parentheses

Note that the emoji processing happens before the header IDs are generated, so the emoji is converted to an image which is then removed from the ID.

Horizontal Rule

Create a horizontal rule by using three or more hyphens, asterisks, or underscores:

Three or more hyphens,

---

asterisks,

***

or underscores

___

Images

Examples:

Inline-style (hover to see title text):

![alt text](img/markdown_logo.png "Title Text")

Reference-style (hover to see title text):

![alt text1][logo]

[logo]: img/markdown_logo.png "Title Text"

Inline-style (hover to see title text):

Reference-style (hover to see title text):

In the rare case where you need to set a specific height or width for an image, you can use the img HTML tag instead of Markdown and set its height and width parameters.

Videos

If this section isn’t rendered correctly, view it in GitLab.

Image tags that link to files with a video extension are automatically converted to a video player. The valid video extensions are .mp4, .m4v, .mov, .webm, and .ogv:

Here's a sample video:

![Sample Video](img/markdown_video.mp4)

Here’s a sample video:

Audio

If this section isn’t rendered correctly, view it in GitLab.

Similar to videos, link tags for files with an audio extension are automatically converted to an audio player. The valid audio extensions are .mp3, .oga, .ogg, .spx, and .wav:

Here's a sample audio clip:

![Sample Audio](img/markdown_audio.mp3)

Here’s a sample audio clip:

Inline HTML

To see the second example of Markdown rendered in HTML, view it in GitLab.

You can also use raw HTML in your Markdown, and it usually works pretty well.

See the documentation for HTML::Pipeline’s SanitizationFilter class for the list of allowed HTML tags and attributes. In addition to the default SanitizationFilter allowlist, GitLab allows span, abbr, details and summary elements.

<dl>
  <dt>Definition list</dt>
  <dd>Is something people use sometimes.</dd>

  <dt>Markdown in HTML</dt>
  <dd>Does *not* work **very** well. HTML <em>tags</em> do <b>work</b>, in most cases.</dd>
</dl>

Definition list

Is something people use sometimes.

Markdown in HTML

Does *not* work **very** well. HTML tags do work, in most cases.

It’s still possible to use Markdown inside HTML tags, but only if the lines containing Markdown are separated into their own lines:

<dl>
  <dt>Markdown in HTML</dt>
  <dd>Does *not* work **very** well. HTML tags work, in most cases.</dd>

  <dt>Markdown in HTML</dt>
  <dd>

  Does *not* work **very** well. HTML tags work, in most cases.

  </dd>
</dl>

Markdown in HTML

Does *not* work **very** well. HTML tags work, in most cases.

Markdown in HTML

Does not work very well. HTML tags work, in most cases.

Collapsible section

To see the second Markdown example rendered in HTML, view it in GitLab.

Content can be collapsed using HTML’s <details> and <summary> tags. For example, collapse a long log file so it takes up less screen space.

<p>
<details>
<summary>Click this to collapse/fold.</summary>

These details <em>remain</em> <strong>hidden</strong> until expanded.

<pre><code>PASTE LOGS HERE</code></pre>

</details>
</p>

PASTE LOGS HERE

Markdown inside these tags is also supported.

Remember to leave a blank line after the </summary> tag and before the </details> tag, as shown in the example:

<details>
<summary>Click this to collapse/fold.</summary>

These details _remain_ **hidden** until expanded.

```
PASTE LOGS HERE
```

</details>

PASTE LOGS HERE

Line breaks

A line break is inserted (a new paragraph starts) if the previous text is ended with two newlines, like when you hit Enter twice in a row. If you only use one newline (hit Enter once), the next sentence remains part of the same paragraph. Use this approach if you want to keep long lines from wrapping, and keep them editable:

Here's a line for us to start with.

This longer line is separated from the one above by two newlines, so it is a *separate paragraph*.

This line is also a separate paragraph, but...
These lines are only separated by single newlines,
so they *do not break* and just follow the previous lines
in the *same paragraph*.

Here’s a line for us to start with.

This longer line is separated from the one above by two newlines, so it is a separate paragraph.

This line is also a separate paragraph, but… These lines are only separated by single newlines, so they do not break and just follow the previous lines in the same paragraph.

Newlines

GitLab Flavored Markdown adheres to the Markdown specification in how paragraphs and line breaks are handled.

A paragraph is one or more consecutive lines of text, separated by one or more blank lines (two newlines at the end of the first paragraph), as explained above.

Need more control over line breaks or soft returns? Add a single line break by ending a line with a backslash, or two or more spaces. Two newlines in a row create a new paragraph, with a blank line in between:

First paragraph.
Another line in the same paragraph.
A third line in the same paragraph, but this time ending with two spaces.{space}{space}
A new line directly under the first paragraph.

Second paragraph.
Another line, this time ending with a backslash.\
A new line due to the previous backslash.

Links

There are two ways to create links, inline-style and reference-style:

- This is an [inline-style link](https://www.google.com)
- This is a [link to a repository file in the same directory](index.md)
- This is a [relative link to a readme one directory higher](../index.md)
- This is a [link that also has title text](https://www.google.com "This link takes you to Google!")

Using header ID anchors:

- This links to [a section on a different Markdown page, using a "#" and the header ID](index.md#overview)
- This links to [a different section on the same page, using a "#" and the header ID](#header-ids-and-links)

Using references:

- This is a [reference-style link, see below][Arbitrary case-insensitive reference text]
- You can [use numbers for reference-style link definitions, see below][1]
- Or leave it empty and use the [link text itself][], see below.

Some text to show that the reference links can follow later.

[arbitrary case-insensitive reference text]: https://www.mozilla.org/en-US/
[1]: https://slashdot.org
[link text itself]: https://www.reddit.com

• This is an inline-style link
• This is a link to a repository file in the same directory
• This is a relative link to a README one directory higher
• This is a link that also has title text

Using header ID anchors:

• This links to a section on a different Markdown page, using a “#” and the header ID
• This links to a different section on the same page, using a “#” and the header ID

Using references:

• This is a reference-style link, see below
• You can use numbers for reference-style link definitions, see below
• Or leave it empty and use the link text itself, see below.

Some text to show that the reference links can follow later.

URL auto-linking

GitLab Flavored Markdown auto-links almost any URL you put into your text:

- https://www.google.com
- https://www.google.com
- ftp://ftp.us.debian.org/debian/
- smb://foo/bar/baz
- irc://irc.freenode.net/
- http://localhost:3000

• https://www.google.com
• https://www.google.com
• ftp://ftp.us.debian.org/debian/
• <smb://foo/bar/baz>
• <irc://irc.freenode.net/>
• http://localhost:3000

Lists

Ordered and unordered lists can be created.

For an ordered list, add the number you want the list to start with, like 1., followed by a space, at the start of each line for ordered lists. After the first number, it does not matter what number you use, ordered lists are numbered automatically by vertical order, so repeating 1. for all items in the same list is common. If you start with a number other than 1., it uses that as the first number, and count up from there.

Examples:

1. First ordered list item
2. Another item
   - Unordered sub-list.
1. Actual numbers don't matter, just that it's a number
   1. Ordered sub-list
   1. Next ordered sub-list item
4. And another item.

1. First ordered list item
2. Another item
   • Unordered sub-list.
3. Actual numbers don’t matter, just that it’s a number
   1. Ordered sub-list
   2. Next ordered sub-list item
4. And another item.

For an unordered list, add a -, * or +, followed by a space, at the start of each line for unordered lists, but you should not use a mix of them.

Unordered lists can:

- use
- minuses

They can also:

* use
* asterisks

They can even:

+ use
+ pluses

Unordered lists can:

• use
• minuses

They can also:

• use
• asterisks

They can even:

• use
• pluses

If a list item contains multiple paragraphs, each subsequent paragraph should be indented to the same level as the start of the list item text.

Example:

1. First ordered list item

   Second paragraph of first item.

1. Another item

1. First ordered list item

   Second paragraph of first item.

2. Another item

If the paragraph of the first item is not indented with the proper number of spaces, the paragraph appears outside the list, instead of properly indented under the list item.

Example:

1. First ordered list item

  Paragraph of first item.

1. Another item

1. First ordered list item

Paragraph of first item.

1. Another item

Superscripts / Subscripts

CommonMark and GitLab Flavored Markdown don’t support the Redcarpet superscript syntax ( x^2 ). Use the standard HTML syntax for superscripts and subscripts:

The formula for water is H<sub>2</sub>O
while the equation for the theory of relativity is E = mc<sup>2</sup>.

The formula for water is H₂O while the equation for the theory of relativity is E = mc².

Tables

Tables are not part of the core Markdown spec, but they are part of GitLab Flavored Markdown.

1. The first line contains the headers, separated by “pipes” (|).
2. The second line separates the headers from the cells.
   • The cells can contain only empty spaces, hyphens, and (optionally) colons for horizontal alignment.
   • Each cell must contain at least one hyphen, but adding more hyphens to a cell does not change the cell’s rendering.
   • Any content other than hyphens, whitespace, or colons is not allowed
3. The third, and any following lines, contain the cell values.
   • You can’t have cells separated over many lines in the Markdown, they must be kept to single lines, but they can be very long. You can also include HTML <br> tags to force newlines if needed.
   • The cell sizes don’t have to match each other. They are flexible, but must be separated by pipes (|).
   • You can have blank cells.
4. Column widths are calculated dynamically based on the content of the cells.

Example:

| header 1 | header 2 | header 3 |
| ---      | ---      | ---      |
| cell 1   | cell 2   | cell 3   |
| cell 4 | cell 5 is longer | cell 6 is much longer than the others, but that's ok. It eventually wraps the text when the cell is too large for the display size. |
| cell 7   |          | cell 9   |

Additionally, you can choose the alignment of text in columns by adding colons (:) to the sides of the “dash” lines in the second row. This affects every cell in the column:

| Left Aligned | Centered | Right Aligned |
| :---         | :---:    | ---:          |
| Cell 1       | Cell 2   | Cell 3        |
| Cell 4       | Cell 5   | Cell 6        |

In GitLab itself, the headers are always left-aligned in Chrome and Firefox, and centered in Safari.

You can use HTML formatting to adjust the rendering of tables. For example, you can use <br> tags to force a cell to have multiple lines:

| Name | Details |
| ---  | ---     |
| Item1 | This is on one line |
| Item2 | This item has:<br>- Multiple items<br>- That we want listed separately |

You can use HTML formatting in GitLab itself to add task lists with checkboxes, but they do not render properly on docs.gitlab.com:

| header 1 | header 2 |
| ---      | ---      |
| cell 1   | cell 2   |
| cell 3   | <ul><li> - [ ] Task one </li><li> - [ ] Task two </li></ul> |

Copy from spreadsheet and paste in Markdown

Introduced in GitLab 12.7.

If you’re working in spreadsheet software (for example, Microsoft Excel, Google Sheets, or Apple Numbers), GitLab creates a Markdown table when you copy-and-paste from a spreadsheet. For example, suppose you have the following spreadsheet:

Select the cells and copy them to your clipboard. Open a GitLab Markdown entry and paste the spreadsheet:

References

• This document leveraged heavily from the Markdown-Cheatsheet.
• The original Markdown Syntax Guide at Daring Fireball is an excellent resource for a detailed explanation of standard Markdown.
• You can find the detailed specification for CommonMark in the CommonMark Spec.
• The CommonMark Dingus helps you test CommonMark syntax.

Transition from Redcarpet to CommonMark

• In GitLab 11.8, the Redcarpet Ruby library was removed. All issues and comments, including those in 11.1 and earlier, are now processed by using the CommonMark Ruby Library.
• In GitLab 11.3 and later, CommonMark processes wiki pages and Markdown files (*.md) in repositories.
• In GitLab 11.1 and later, the CommonMark Ruby Library for Markdown processes all new issues, merge requests, comments, and other Markdown content.

The documentation website migrated its Markdown engine from Redcarpet to Kramdown in October 2018.

You may have older issues, merge requests, or Markdown documents in your repository that relied upon nuances of the GitLab RedCarpet version of Markdown. Because CommonMark uses slightly stricter syntax, these documents may now appear differently after the transition to CommonMark.

For example, numbered lists with nested lists may render incorrectly:

1. Chocolate
  - dark
  - milk

To fix this issue, add a space to each nested item. The - must be aligned with the first character of the top list item (C in this case):

1. Chocolate
   - dark
   - milk

1. Chocolate
   • dark
   • milk

We flag any significant differences between Redcarpet and CommonMark Markdown in this document.

If you have many Markdown files, it can be tedious to determine if they display correctly or not. You can use the diff_redcarpet_cmark tool to generate a list of files and the differences between how RedCarpet and CommonMark render the files. It indicates if any changes are needed.

diff_redcarpet_cmark is not an officially supported product.
