Org mode

GitLab uses the gitlab-markup gem, which uses the org-ruby gem, to convert Org mode content to HTML. For a complete reference to Org mode syntax, see the Org manual.

You can use Org mode in the following areas:

• Org mode documents (.org) inside repositories
• Snippets, when the snippet file is named with a .org extension
• Wiki pages

Headings

Leading asterisks (*) render as headings 1 to 6.

* Heading 1
** Heading 2
*** Heading 3
**** Heading 4
***** Heading 5
****** Heading 6

#+TITLE: renders as the H1 heading at the top of the page:

#+TITLE: Welcome to Org-mode

Heading anchors

GitLab automatically adds an anchor to every Org mode heading, so you can link to it.

On hover, a link to those anchors becomes visible to make it easier to copy the link to the heading to use it somewhere else.

The anchors are generated from the content of the heading according to the following rules:

1. All text is converted to lowercase.
2. All characters except letters, numbers, hyphens, and underscores are removed.
3. All spaces are converted to hyphens.
4. If a heading with the same anchor has already been generated, a unique incrementing number is appended, starting at 1.

Example:

* This heading has spaces in it
** This heading has an accent in it: Café
** This heading has Unicode in it: 日本語
** This heading has spaces in it
*** This heading has spaces in it
** This heading has 3.5 in it (& parentheses)
** This heading has  multiple spaces and - hyphens_and_underscores

Would generate the following heading anchors:

1. #this-heading-has-spaces-in-it
2. #this-heading-has-an-accent-in-it-café
3. #this-heading-has-unicode-in-it-日本語
4. #this-heading-has-spaces-in-it-1
5. #this-heading-has-spaces-in-it-2
6. #this-heading-has-35-in-it--parentheses
7. #this-heading-has--multiple-spaces-and---hyphens_and_underscores

In a snippet, headings also get a prefix derived from the filename, to prevent anchor collisions across multiple files. For example, a * TL;DR heading in a file named README.org gets the anchor #readme-tldr instead of #tldr.

Lists

Org mode supports unordered lists, ordered lists, description lists, and nested lists.

Unordered lists

A hyphen (-) or a plus sign (+) creates an unordered list:

- Item one
- Item two
  - Nested item

+ Item one
+ Item two
  + Nested item

When rendered, both examples look similar to:

• Item one
• Item two
  • Nested item

Ordered lists

A number followed by a period (.) or a closing parenthesis ()) creates an ordered list:

1. First item
2. Second item
   1. Nested item

1) First item
2) Second item
   1) Nested item

When rendered, both examples look similar to:

1. First item
2. Second item
   1. Nested item

Description lists

- term1 :: Definition of term one
- term2 :: Definition of term two

When rendered, the example looks similar to:

term1

Definition of term one

term2

Definition of term two

Checkboxes

[ ], [X], and [-] after a list marker render as checkbox input elements. [-] renders as an intermediate (indeterminate) checkbox:

- [-] Prepare release
  - [X] Update changelog
  - [ ] Review merge requests

When rendered, the example looks like:

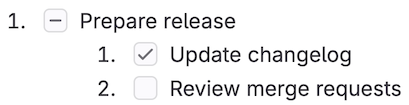

Checkboxes also work in ordered lists:

1. [-] Prepare release
   1. [X] Update changelog
   2. [ ] Review merge requests

When rendered, the example looks like:

Tables

Pipes (|) create a table. A separator row made of dashes (-) and plus signs (+) turns the row above it into the table header:

| Item  | Unit price ($) | Quantity | Subtotal ($) |
|-------+----------------+----------+--------------|
| Eggs  |              3 |        2 |            6 |
| Milk  |              2 |        1 |            2 |
| Bread |              1 |        3 |            3 |
|-------+----------------+----------+--------------|
| Total |                |          |           11 |
#+TBLFM: $>=$2*$3::@>$>=vsum(@I..@II)

When rendered, the example looks similar to:

Item	Unit price ($)	Quantity	Subtotal ($)
Eggs	3	2	6
Milk	2	1	2
Bread	1	3	3
Total			11

Links

You can create links in multiple ways:

- [[https://example.com][This line shows an inline-style link]]
- [[permissions.md][This line shows a link to a file in the same directory]]
- [[../_index.md][This line shows a relative link to a file one directory higher]]
- [[#headings][This line links to a heading on the same page, using a `#` and the heading anchor]]

When rendered, the example looks similar to:

• This line shows an inline-style link
• This line shows a link to a file in the same directory
• This line shows a relative link to a file one directory higher
• This line links to a heading on the same page, using a # and the heading anchor

URL auto-linking

Almost any URL you put into your text is auto-linked:

See https://example.com for details.

When rendered, the example looks similar to:

See https://example.com for details.

Emphasis

Images

Linking to an image file without description text embeds the image inline:

[[img/markdown_logo_v17_11.png]]

When rendered, the example looks similar to:

Horizontal rules

Five or more consecutive hyphens (-) create a horizontal rule:

Paragraph before.

-----

Paragraph after.

When rendered, the example looks similar to:

Paragraph before.

---

Paragraph after.

Comments

Lines that start with # followed by a space aren’t rendered:

Visible before.

# This line is a comment and isn't rendered.

Visible after.

When rendered, the example looks similar to:

Visible before.

Visible after.

Content between #+BEGIN_COMMENT and #+END_COMMENT isn’t rendered:

Visible before the block.

#+BEGIN_COMMENT
This entire block is a comment.
None of these lines are rendered.
#+END_COMMENT

Visible after the block.

When rendered, the example looks similar to:

Visible before the block.

Visible after the block.

A heading marked with COMMENT right after the heading markers, and everything nested under it, isn’t rendered:

* Visible heading

Some visible text.

* COMMENT Hidden heading

This text isn't rendered.

** Nested under hidden heading

This text isn't rendered either.

* Another visible heading

Only Visible heading and Another visible heading, and the text between them, appear in the rendered output.

Text blocks

#+BEGIN_QUOTE and #+END_QUOTE create a quoted block:

#+BEGIN_QUOTE
Everything should be made as simple as possible,
but not any simpler ---Albert Einstein
#+END_QUOTE

When rendered, the example looks similar to:

Everything should be made as simple as possible, but not any simpler —Albert Einstein

#+BEGIN_EXAMPLE and #+END_EXAMPLE create a preformatted text block:

#+BEGIN_EXAMPLE
Here is an example.
#+END_EXAMPLE

When rendered, the example looks similar to:

Here is an example.

A colon (:) and a space also creates a preformatted text block:

: Here is an example.

When rendered, the example looks similar to:

Here is an example.

Source code blocks

#+BEGIN_SRC and #+END_SRC with a language name create a syntax-highlighted code block:

#+BEGIN_SRC python
import requests
data = requests.get("https://jsonplaceholder.typicode.com/users/1").json()
#+END_SRC

When rendered, the example looks similar to:

import requests
data = requests.get("https://jsonplaceholder.typicode.com/users/1").json()

GitLab uses the Rouge Ruby library for syntax highlighting. For a list of supported languages, see the Rouge project wiki.

Adding :exports both to the block header includes the execution results (#+RESULTS:) of a source block in the rendered output:

#+BEGIN_SRC python :exports both :results output code
import requests
data = requests.get("https://jsonplaceholder.typicode.com/users/1").json()
print([data["username"], data["email"]])
#+END_SRC

#+RESULTS:
#+begin_src python
['Bret', 'Sincere@april.biz']
#+end_src

When rendered, the example looks similar to:

import requests
data = requests.get("https://jsonplaceholder.typicode.com/users/1").json()
print([data["username"], data["email"]])

['Bret', 'Sincere@april.biz']

Diagrams and flowcharts

You can generate diagrams from text in a source code block, the same way as in GitLab Flavored Markdown.

Mermaid

#+BEGIN_SRC mermaid
graph TD;
    A-->B;
    A-->C;
    B-->D;
    C-->D;
#+END_SRC

When rendered, the example looks similar to:

graph TD;
    A-->B;
    A-->C;
    B-->D;
    C-->D;

PlantUML

PlantUML integration is enabled on GitLab.com. To make PlantUML available on GitLab Self-Managed, a GitLab administrator must enable it.

#+BEGIN_SRC plantuml
Bob -> Alice : hello
Alice -> Bob : hi
#+END_SRC

Math equations

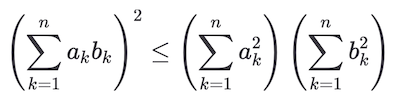

Math written in a source code block with the language declared as math is rendered with KaTeX. KaTeX only supports a subset of LaTeX.

#+BEGIN_SRC math
\left( \sum_{k=1}^n a_k b_k \right)^2 \leq \left( \sum_{k=1}^n a_k^2 \right) \left( \sum_{k=1}^n b_k^2 \right)
#+END_SRC

When rendered, the example looks like:

GitLab Query Language (GLQL)

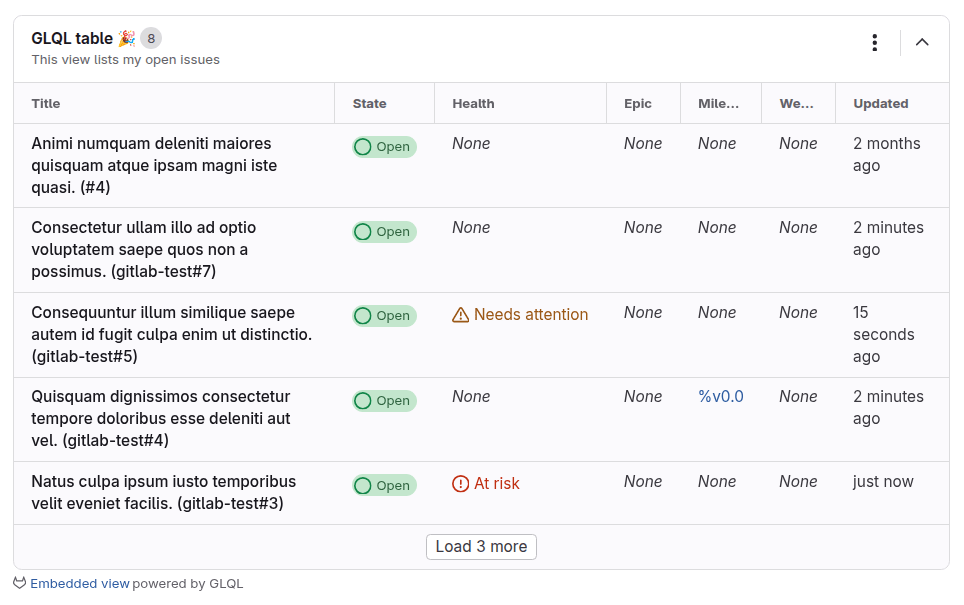

A source code block with the language declared as glql embeds a GitLab Query Language (GLQL) view:

#+BEGIN_SRC glql
display: table
title: GLQL table 🎉
description: This view lists my open issues
fields: title, state, health, epic, milestone, weight, updated
limit: 5
query: type = Issue AND group = "gitlab-org" AND assignee = currentUser() AND state = opened
#+END_SRC

When rendered, the example looks like:
